Most accurate advice to choose suitable HOWO Aircraft Refueling Trucks

What are HOWO aircraft refueling trucks?

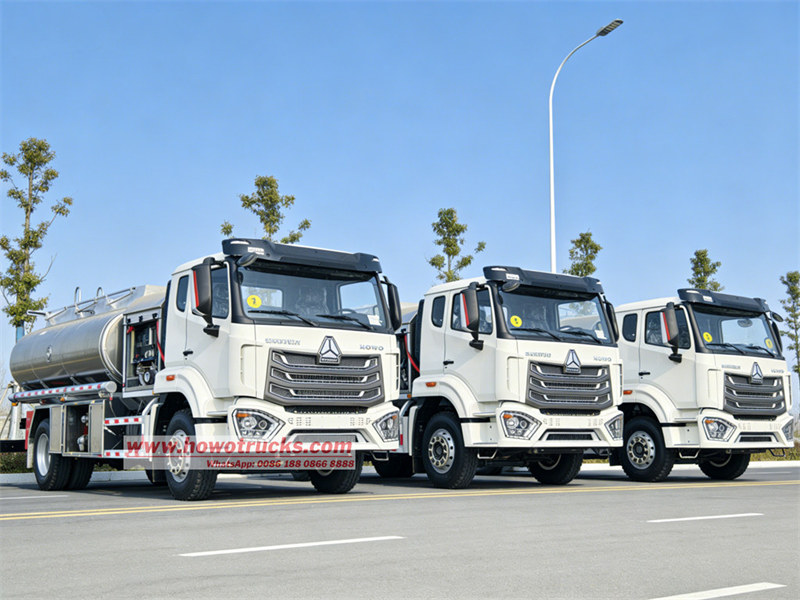

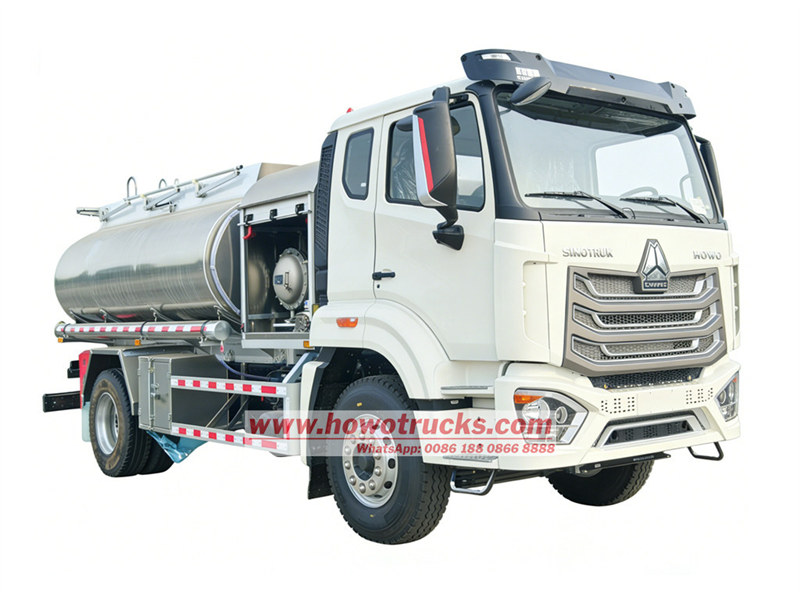

Aircraft refueling truck is the development of normal fuel tanker trucks, which not only have the safety of normal fuel boswer, but also multiple function for refueling all kinds of aircraft, including helicopter, civilian aircraft and military fighter flight, etc. Nigeria Army customized and purchased 3 units Howo NX aircraft refueling truck is specialized design for helicopter refueling process, which equipped with 10cbm fuel tanker and efficiently stainless steel fuel pump, also 20m hose reel and refueling gun for multiple usage.

Chassis	HOWO NX 4x2
Engine	WD615.87, 290HP and 9726cc
Gearbox	HW15710, 10F and 2R
Fuel Tanker	10000Liters, Aluminum Alloy
Fuel Pump	70L/min to 150L/min
Filter	Flowrate 400L/min
Horse Reel	1" or 1.5", 20m hose reel
Painting & Logos	Customized

Advanced features and component of HOWO aircraft fuel tankers?

CS TRUCKS HOWO aircraft fuel vehicles with advanced features as below:

Fuel Tanker: Optional as Aluminum alloy material or stainless steel, which features of lightweight design and large volume, also with excellent corrosion resistance, ensuring long life service and guarantee fuel quality.

Refueling Pump: Stainless steel fuel pump with efficiently flow rate range from 50L/min to 2500L/min, pump in and pump out valve, efficiently for working.

Horse Reel and Gun: Matched working with multiple type refueling pump, the horse reel length optional 10-30m, with diameter optional as 1", 1.5", 2", etc, and available to be matched with normal refueling gun and specialized underwing refueling gun.

Fuel Filter Assembly: Customized based on refueling pump flow rate, which have efficiently design rate 24m3/h to 150m3/h, guarantee aircraft fuel be clean and pure before enter to the aircraft.

Integrated Control Panel: Integrated control panel for multiple working, also equipped with multiple alarm device for safety usage.

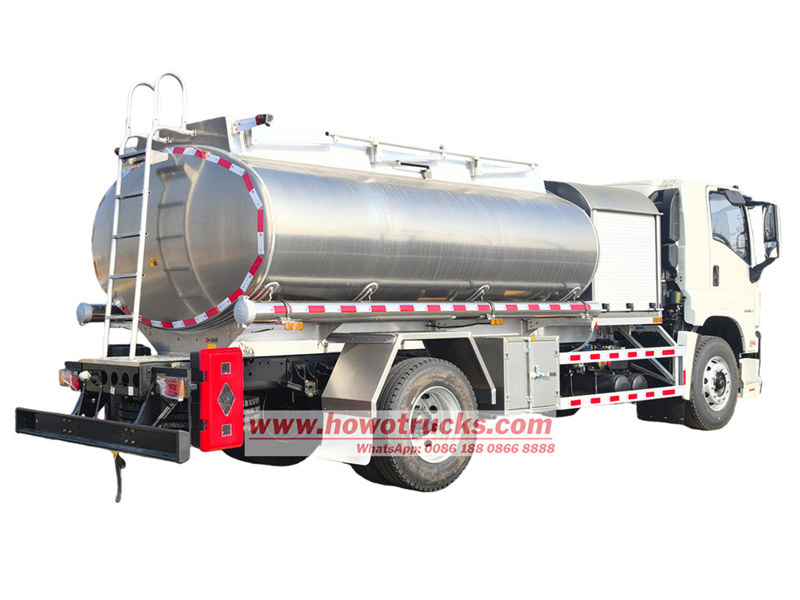

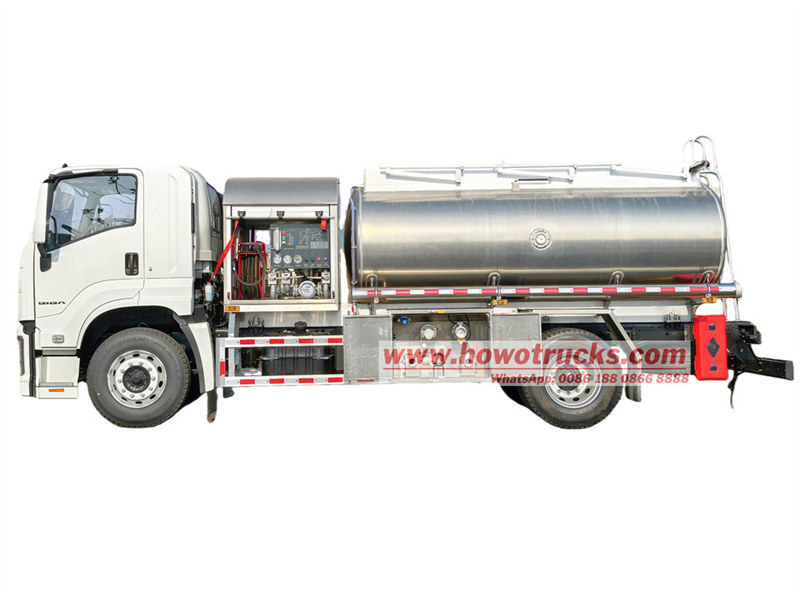

HOWO 10cbm aircraft fuel tanker truck	Howo 10000L refueling pumper truck

Customized Refueling Gun for Helicopter or Big Plane:

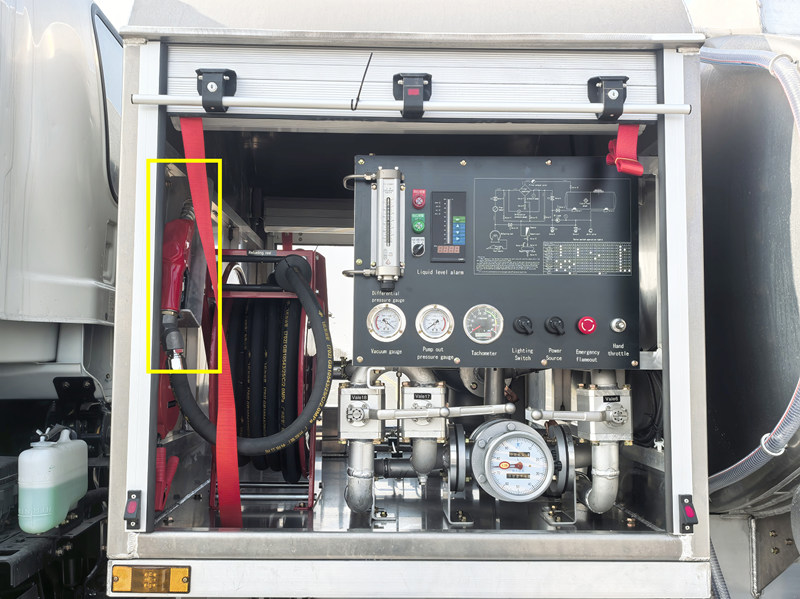

Horse reel with normal refueling gun

Normal designed refueling gun system, optional 1" or 1.5", matched working with 15m, 20m, 30m horse reel, suitable for helicopter refueling, smaller plane refueling, etc.

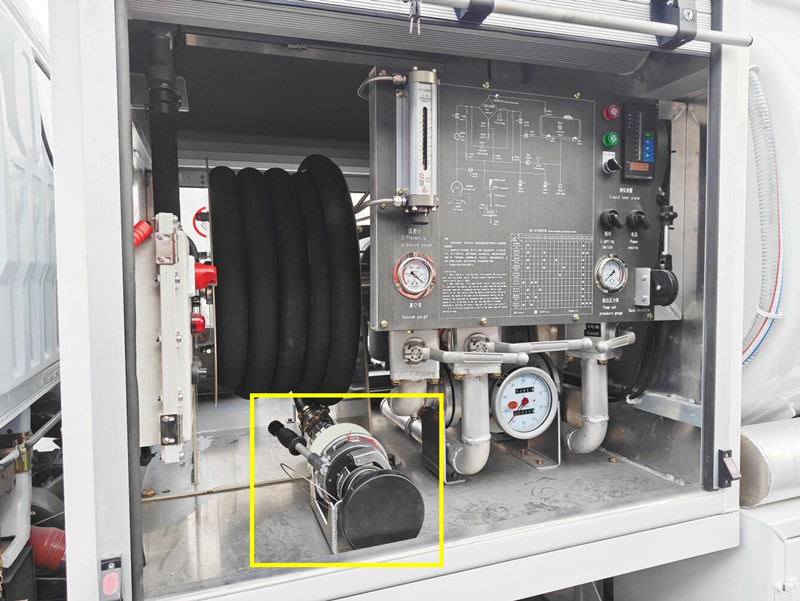

Hose reel with underwing refueling gun

Customized Underwing Refueling Nozzle, and working under pump pressure, which can be used to big airplane refueling, civilian refueling and fighter aircraft refueling, etc.



Technical Drawing for HOWO aircraft refuel trucks for multiple choose?

HOWO 4x2 model truck chassis designed and produced as aircraft refueling vehicles, with efficiently tanker capacity range from 4000liters to 10000liters, Below are HOWO NX 10000Liters aircraft refueling truck technical drawing, which designed and export to Africa Nigeria for army helicopter refueling working.

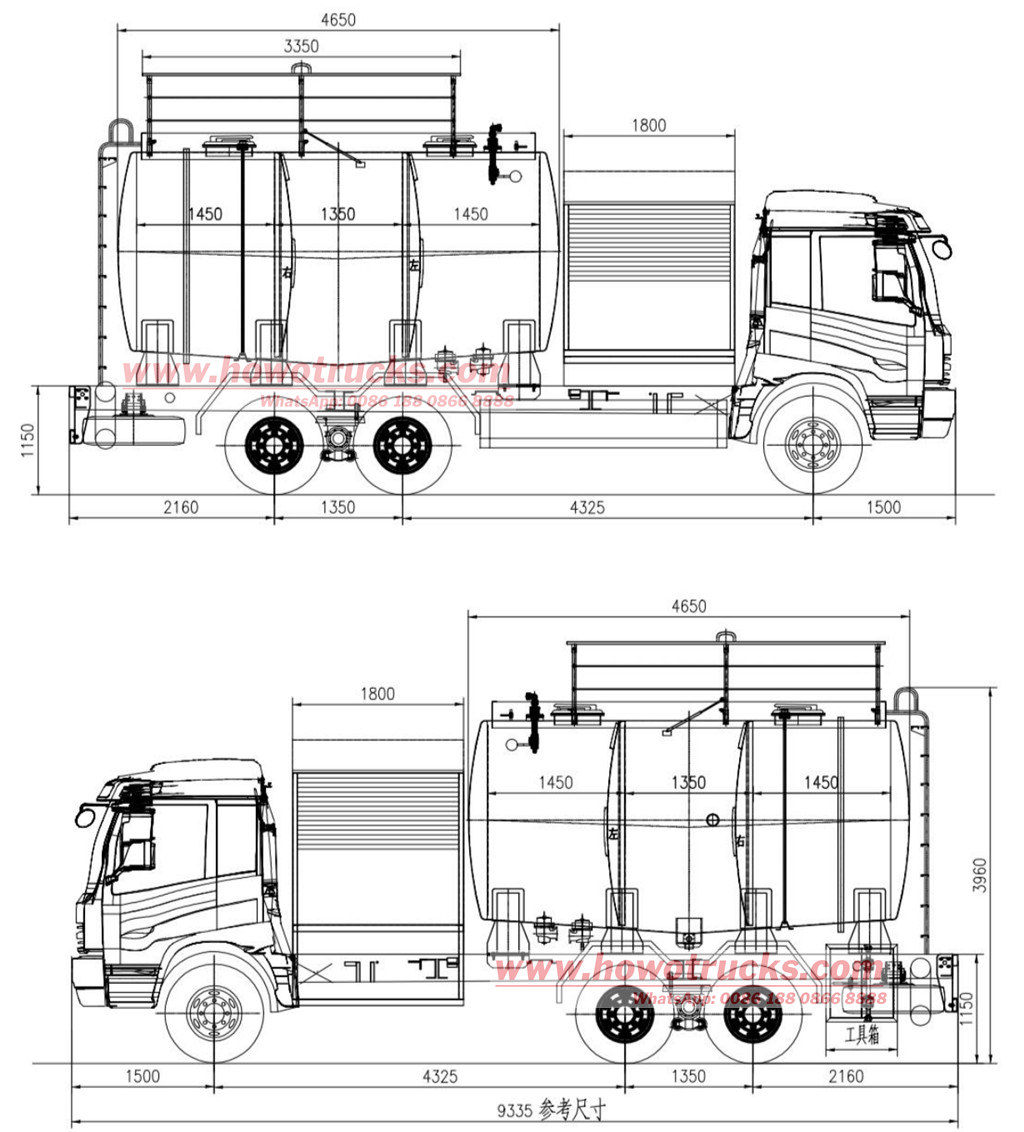

HOWO 6x4 model heavy duty truck chassis designed and produced as aircraft refueling vehicles, with efficiently tanker capacity range from 16000liters to  25000liters, Below are HOWO NX 6x4 371HP aircraft refueling truck technical drawing, which can be designed and used for Africa and Asia market.

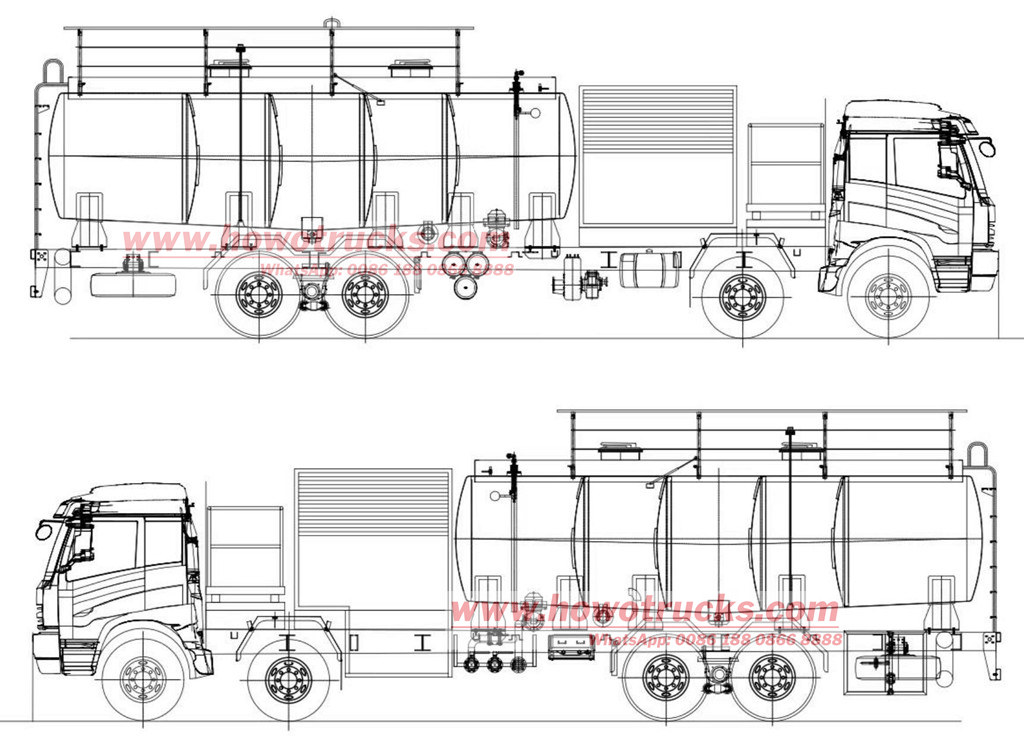

HOWO 8x4 model 12 wheeler truck chassis mounted with aircraft refueling tankers, with efficiently tanker capacity range from 26000liters to 38000liters, Below are HOWO NX 35000Liters aircraft refueling truck technical drawing, Which also equipped with underwing refueling nozzles and can be used for big airplane refueling.

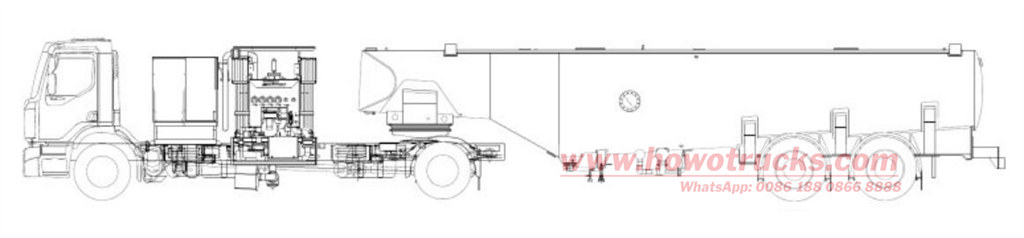

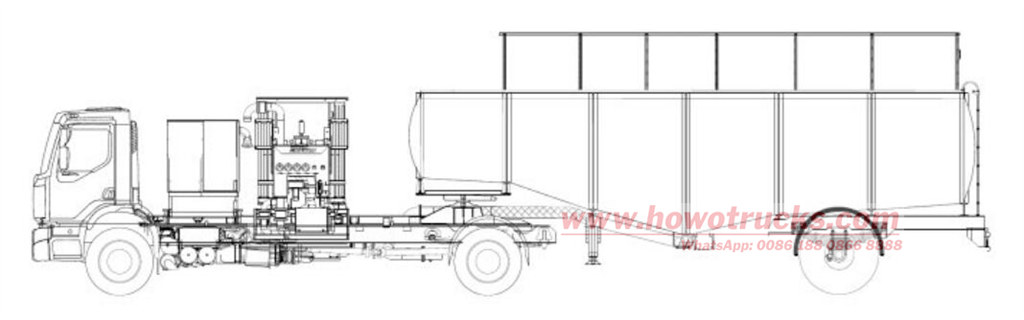

HOWO tractor truck mounted with aircraft refueling tanker semitrailer, with efficiently tanker capacity range from 40000liters to  60000liters, which also equipped with underwing refueling nozzles and can be used for big airplane refueling, also can customize different type HOWO tractor head with optional engine power.
