HOWO NX 15000L sewage jetting truck double tanker design and advantages

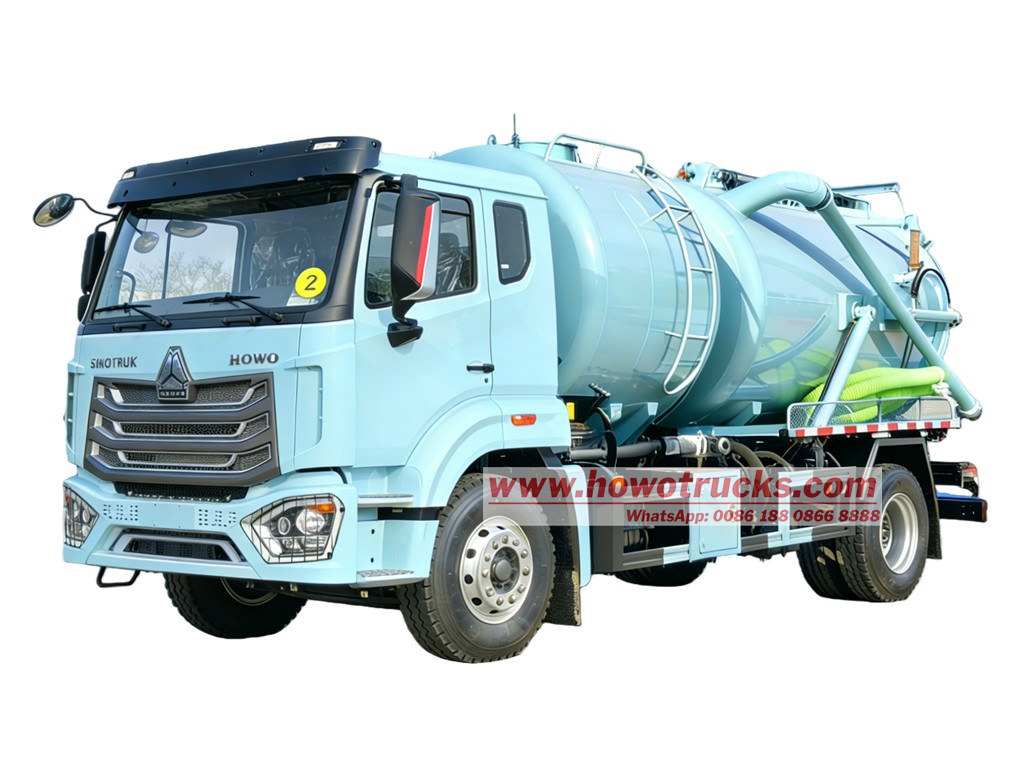

What is HOWO NX 15000L Combined Sewer Jetting Truck?

Sinotruk HOWO combined vacuum sewage suction truck is designed based on HOWO NX model 4x2 truck chassis, equipped with WEICHAI WD615.50 diesel engine, 213KW / 290HP with emission 9726cc, matched with HOWO HW15710 manual gearbox, 10 forward and 2 reverse back, very lower fuel consumption. Totally 15000L vacuum jetting upper body kit, which are separately tanker body kit included 10000Liters sewage tanker body and 5000L clean water tanker body, which are separately designed tanker assembly, with advantages as lower gravity center, convenient for maintenance, safety for driving and transportation. Detailed of vacuum assembly and water assembly as below showing:

Vacuum Assembly: 15000Liters capacity, Q355 material with thickness 6mm for tanker and shell cover, standard with safety baffle, matched water cycle model SK-12 vacuum pump, maximum pressure 8000Pa, efficiently flow rate 12m3/min, rated speed 970rpm. Standard DN100 pump inlet valve and DN150 outlet valve, matched reducer and 10m DN100 hose reel.

Water Assembly:  5000Liters capacity, Q355 material with thickness 4mm for tanker and 6mm shell cover, standard with safety baffle, matched with 3N2 model high pressure jetting pump, maximum pressure 240bar/psi, maximum flow 170L/min, pump speed 405rpm, matched with 60m φ19 hose reel, and efficiently 10 sets nozzle.

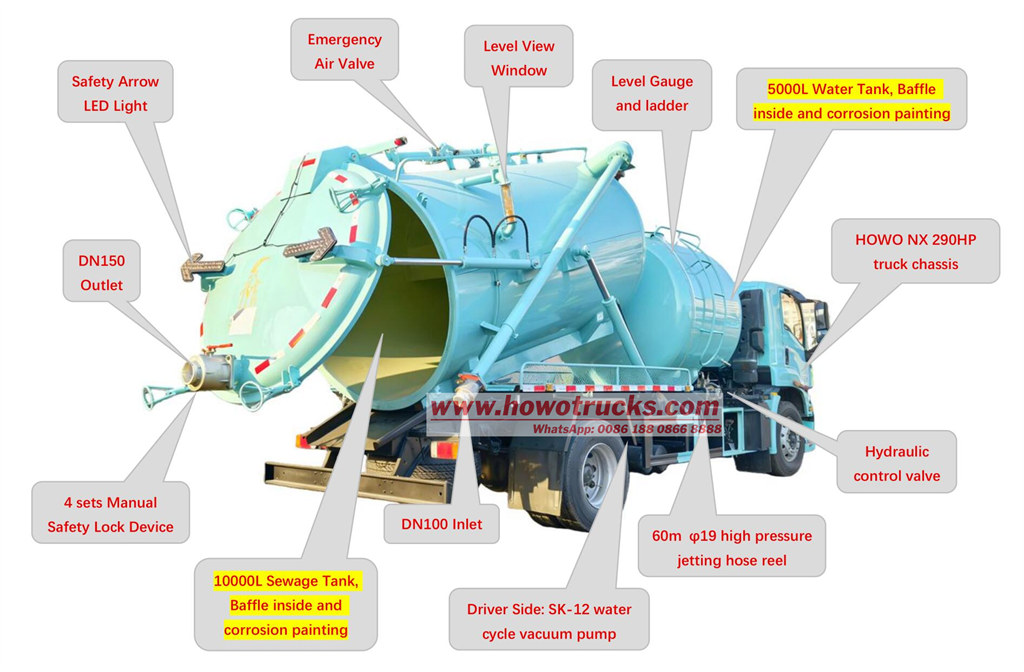

Main Component for HOWO 15CBM Sewer Jetter Truck?

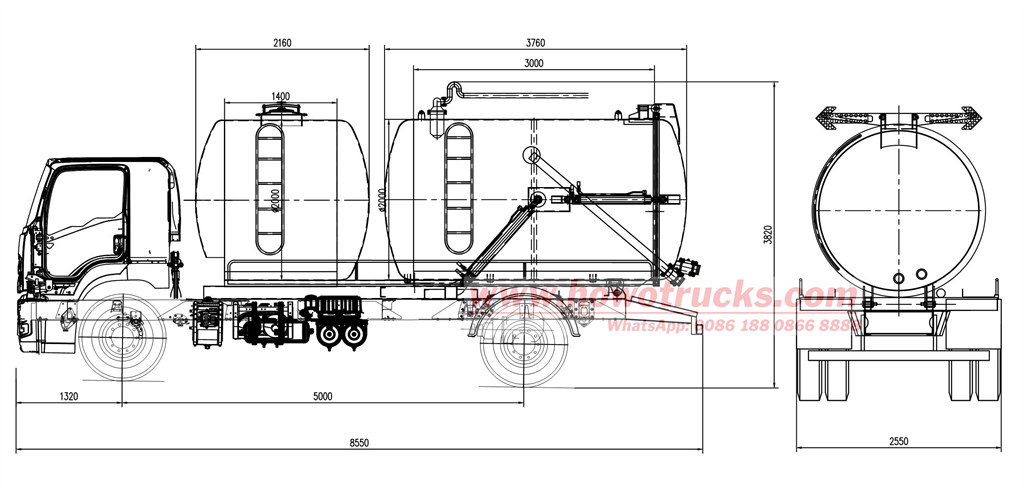

Technical Drawing and Parameters for HOWO Vacuum Jetting Truck?

Truck Name	HOWO NX combined vacuum jetter
Cabin	HOWO NX 290
Engine	WEICHAI WD615.50, 290HP, 9726cc
Transmission	HW15710, 10F & 2R
Water Tank	5000L capacity 3N2 high pressure pump, 24Mpa and flow rate 170L/min, with 60 hose reel
Sewage Tank	10000L capacity SK-12 vacuum pump, 8000Pa and flow rate 12m3/min, with speed 970rpm
Body Type	Q355  material, with separately type tanker body kit, front for clean water rear for sewage
